YRDIZIXT Nema 42 3Phase Hybrid Open Loop Stepper Motor 19mm Shaft 12/16/20Nm 110V-220V 1.2° 6A 110mm Motor AC80-240V 3522 Drive Kit

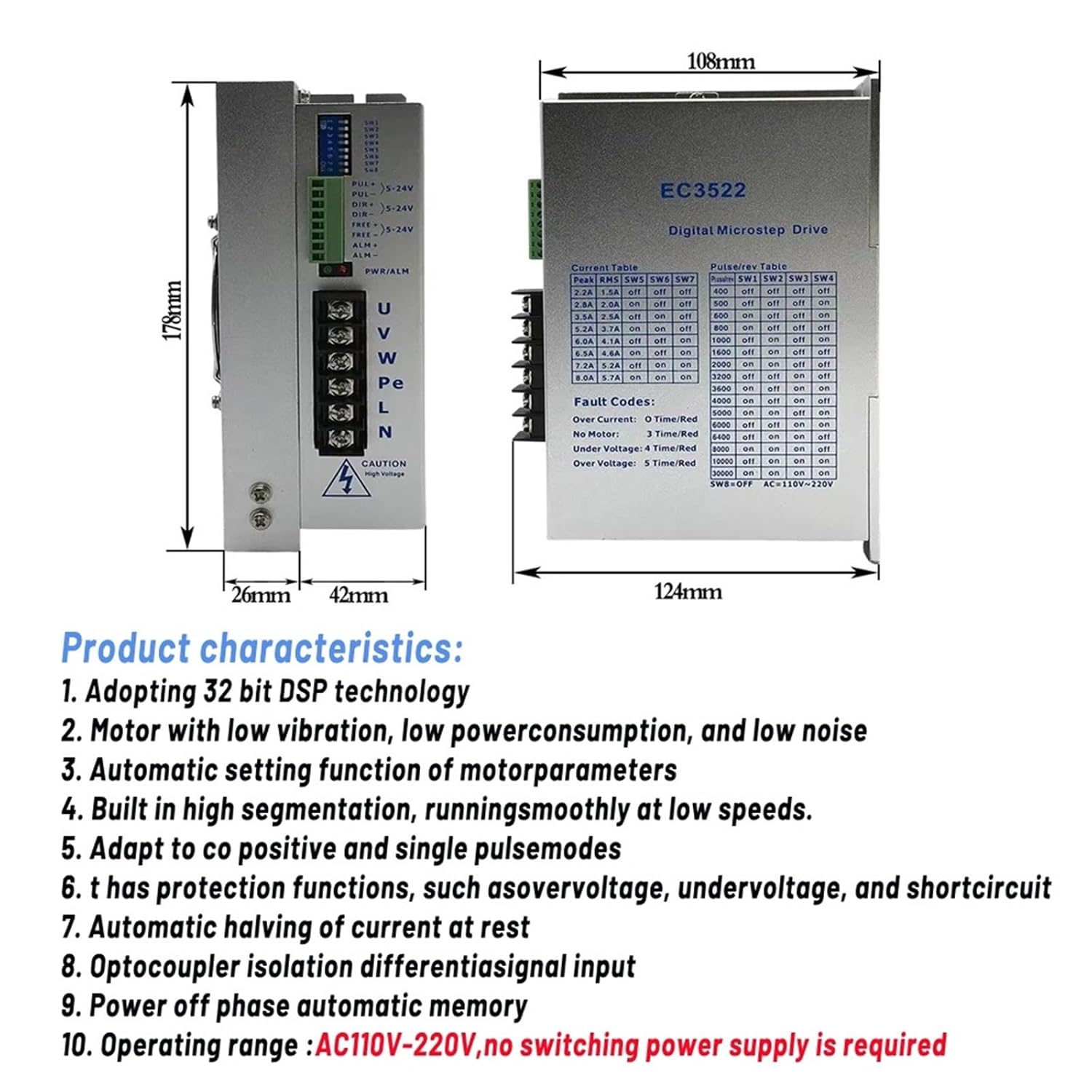

Single Motor:1 × Nema42 110 Stepper motorMotor and Driver:1 × Nema42 110 Stepper motor1 × EC3522 Driver3PH Nema42 110mm Flange Stepper Motor Technical ParametersModelStep AngleBody lengthHolding torqueCurrentPhase resistanceMoment of inertiaOutputdiameterDriver(mm)(N.m)(A)()(g.cm²)(mm)110BYG16060A3J191.2°160126 0.81190019EC3522110BYG18560A3J191.2°185166 1.314800110BYG22060A3J191.2°220206 1.519600Driver Specifications:1.Model: EC35222.Adapted motor: 3PH 86mm flange stepper motor3.Driver operating range: AV 110-220V4.Input/ Output current: 2.2-5.7A5.Maximum power: 150W6.Operating environment temperature: -10-457.Storage temperature: -40-70Current / Phase : 6AStep Angle(degrees) : 1.2Phase : 3Model Number : 110BYGH+EC3522Origin : Mainland ChinaCable length : 2mCertification : UL,CECurrent : 6AShaft Diameter : 19mmHolding torque : 12/16/20N.mDriver : EC3522Step angle : 1.2Adapted motor : 3PH 86mm flange stepper motorDriver operating range : AC110V-220V,AV 110-220VInput/ Output current : 2.2-5.7AOperating environment temperature : -10-45Storage temperature : -40-70

• High-Efficiency Operation:Maximum power of 150W with an input/output current of 2-7.2A for efficient performance.
• Precise Step Angle:With a 1.2° step angle, this motor ensures precise and accurate positioning.
• Durable Construction:Constructed to withstand 105℃, this motor is built for long-term reliability.
• Versatile Driver Compatibility:The EC3522 driver operates efficiently across AC110V-220V, adapting to various power sources.
• Nema 42 Hybrid Stepper Motor|Nema 42 Hybrid|High Torque Range:Available in 12/16/20N.m holding torque, ideal for heavy-duty applications.
