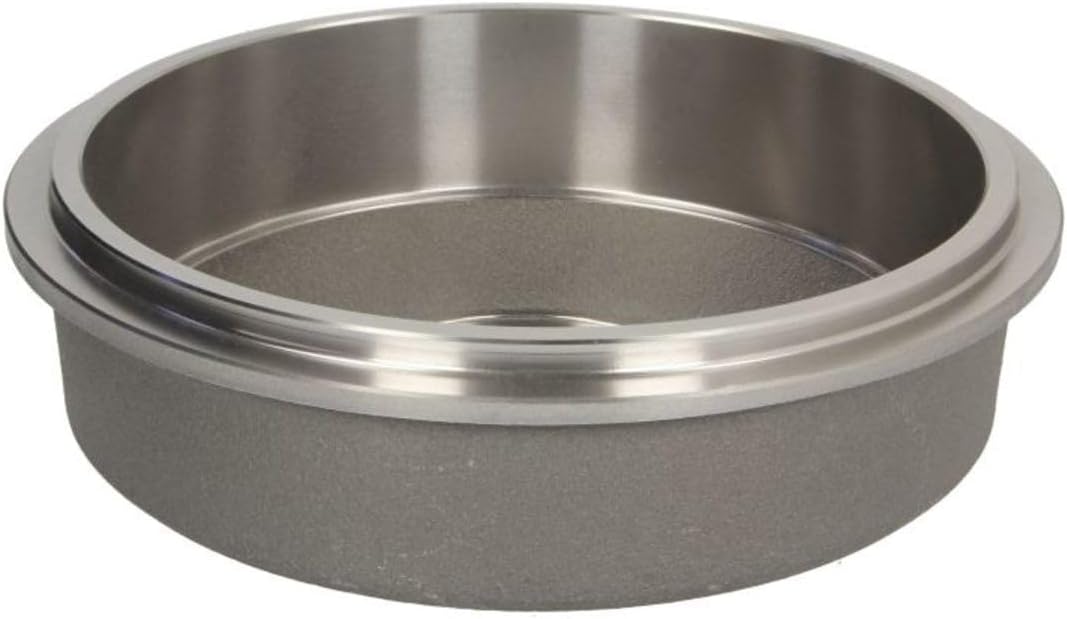

TRW Automotive AfterMarket DB4023 Brake Drum

This part fits the following models:Fiat Ducato Platform/Chassis 2.8 JTD (2002 - ) 94kW Citroën Relay Box 2.2 HDi (2002 - ) 74kW Peugeot Boxer Box 2.2 HDi (2001 - ) 74kW Fiat Ducato Platform/Chassis 2.3 JTD (2002 - ) 81kW Peugeot Boxer Bus 2.5 TD (1994 - 2002) 76kW Peugeot Boxer Box 2.0 HDi (2001 - ) 62kW Peugeot Boxer Box 2.0 i (1994 - 2003) 80kW Fiat Ducato Box 2.3 JTD (2002 - ) 81kW Peugeot Boxer Platform/Chassis 2.0 HDi (2001 - ) 62kW Fiat Ducato Box 2.0 JTD (2002 - ) 62kWThis list is a sample of all the compatible cars for this part. Make sure this product fits your car by using the part finder above.Equivalent Part Numbers:FIAT 4449694; FIAT 1313675080; ALFA ROMEO 4389374; ALFA ROMEO 4449694; CITROËN ZF4449694; CITROËN 4247 22; PEUGEOT 4247 22; METELLI 180013; A.B.S. 3231S; BORG & BECK BBR7011; BENDIX 329008B; QUINTON HAZELL BTF147; QUINTON HAZELL BDR147; QUINTON HAZELL BDR551; FTE BT147; TEXTAR 98100010201; TEXTAR 94010200; JURID 8285820294; JURID 329008J; BOSCH 0 986 477 031; OMC 100122; VALEO 237014; NK 269906; NK 262305; QH Benelux 66209; Brake ENGINEERING DR960520; MINTEX MBD041; ZIMMERMANN 230190100; METZGER BT233; PEX 150004; DELPHI BT147; DELPHI BF153; DELPHI BF1153; APEC braking DRM9705; TRISCAN 812010205; REMSA 704400; CAR 433075; MGA T7416; FIRST LINE FBR617; BREMBO 14316110; FERODO FDR329008; FEBI BILSTEIN 07889; ATE 24022540021; PAGID 60901; SWAG 70907889; HELLA 8DT 355 300-061

• Bolt Hole Circle Ø [mm]: 118
• Br. Drum outer diameter [mm]: 271
• Centering Diameter [mm]: 72
• Drum Diameter: 254,0
• Inner Brake Drum Height [mm]: 62
• Max.skimmed drum measure [mm]: 255,5
• Number of Holes: 5
• Thread Measurement 1: 15,6
• Thread Measurement 2: M10 x 1,5
• Total Br. Drum Height [mm]: 98
