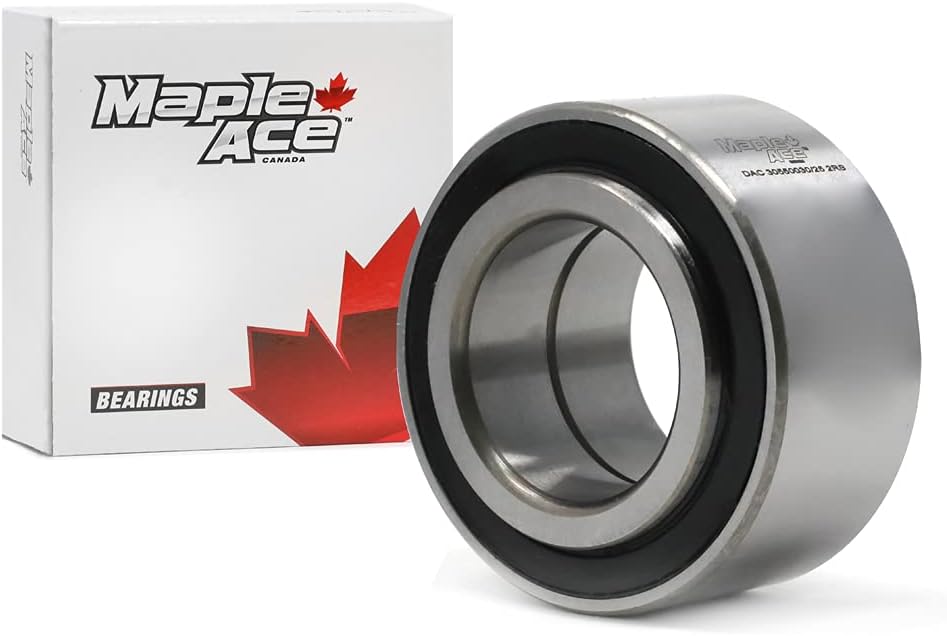

MAPLE ACE 0402-275 Wheel Bearing Compatible with Arctic Cat Rear/Front: 300 98-04 Front: 250 99-05, 500 98-04, 375 02, 400/454 96-04, 650 04; Rear: 250 99-05, 400/500 FIS TBX TRV 02-04 (Qty 2)
Product details
| Management number | 218174093 | Release Date | 2026/05/03 | List Price | $10.38 | Model Number | 218174093 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification: Item DAC30550030/25-2RS, Inner Diameter Metric 30.00 mm, Inner Diameter Inch 1.1811 in, Outside Diameter Matric 55.00 mm, Outside Diameter Inch 2.1653 in, Width Inner Ring Matric 30.00 mm, Width Inner Ring Inch 1.1811 in, Width Outer Ring Matric 25.00 mm, Width Outer Ring Inch 0.9842 in, ClosuresTwo Rubber Seals (2RS), Includes ABS No, Lubrication Type Grease Shell Gadus S2, Material Gcr15, Rolling Element Indicator Ball, Series Wheel Bearing, Design Double Row Angular Contact, Generation G1, Product Weight 0.250 KG. - Application: Compatible with/Replacement for Front Wheel Bearing Arctic Cat 250 2x4 99-05, 250 4x4 01-04, 300 2x4 98-04, 300 4x4 98-04, 375 2x4 w/AT 02, 375 4x4 w/AT 02, 400 2x4 98-01, 400 4x4 98-00, 400 4x4 w/AT 03-04, 400 4x4 w/MT 01-04, 400 FIS 2x4 w/AT 03-04, 400 FIS 2x4 w/MT 03-04, 400 FIS 4x4 w/AT 03-04, 400 FIS 4x4 w/MT 02-04, 400 TBX 4x4 04, 454 2x4 97-98, 454 4x4 96-98, 500 4x4 98-99, 500 4x4 w/AT 00-02, 500 4x4 w/MT 00-01, 500 FIS 4x4 w/AT 02-04, 500 FIS 4x4 w/MT 02-04, 500 FIS TBX 4x4 02-04, 500 FIS TRV 4x4 03-04, 650 4x4 w/AT V2 04. Rear Wheel Bearing 250 2x4 99-05, 250 4x4 01-04, 300 2x4 98-04, 300 4x4 98-04, 400 FIS 2x4 w/AT 03-04, 400 FIS 2x4 w/MT 03-04, 400 FIS 4x4 w/AT 03-04, 400 FIS 4x4 w/MT 02-04, 400 TBX 4x4 04, 500 FIS 4x4 w/AT 02-04, 500 FIS 4x4 w/MT 02-04, 500 FIS TBX 4x4 03-04, 500 FIS TRV 4x4 03-04
- DAC30550030/25-2RS Wheel Bearing Dimensions: ID: 30.00 mm (1.1811 in); OD: 55.00 mm (2.1654 in); Width (Inner Ring): 30.00 mm (1.1811 in); Width (Outer Ring): 25.00 mm (0.9843 in)
- Low-maintenance Angular bearing contact design for problem-free operation; Supports both radial and axial loads for long-term durability
- Interchange Part Numbers: DAC305530/25, 20-2035, 25-1434, ATV-BB-2
- OEM Reference Numbers: 0402-275
- Precision-manufactured for reliable fit and long service life; Designed to meet OEM performance standards; Professional installation recommended
| UPC | 841339030449 |
|---|---|
| Model | DAC30550030/25-2RS |
| Brand Name | MAPLE ACE |
| Unit Count | 2.0 Count |
| Item Weight | 0.5 Kilograms |
| Part Number | 0402-275 |
| Bearing Type | Ball Bearing |
| Manufacturer | MAPLE ACE |
| Material Type | Alloy Steel |
| Bearing Number | 0402-275 |
| Item Thickness | 30 Millimeters |
| Item Dimensions | 2.28 x 2.28 x 2.76 inches |
| Outside Diameter | 55 Millimeters |
| Specification Met | Iatf 16949 |
| Included Components | No |
| Compatible Lubricant | Grease |
| Warranty Description | No Warranty |
