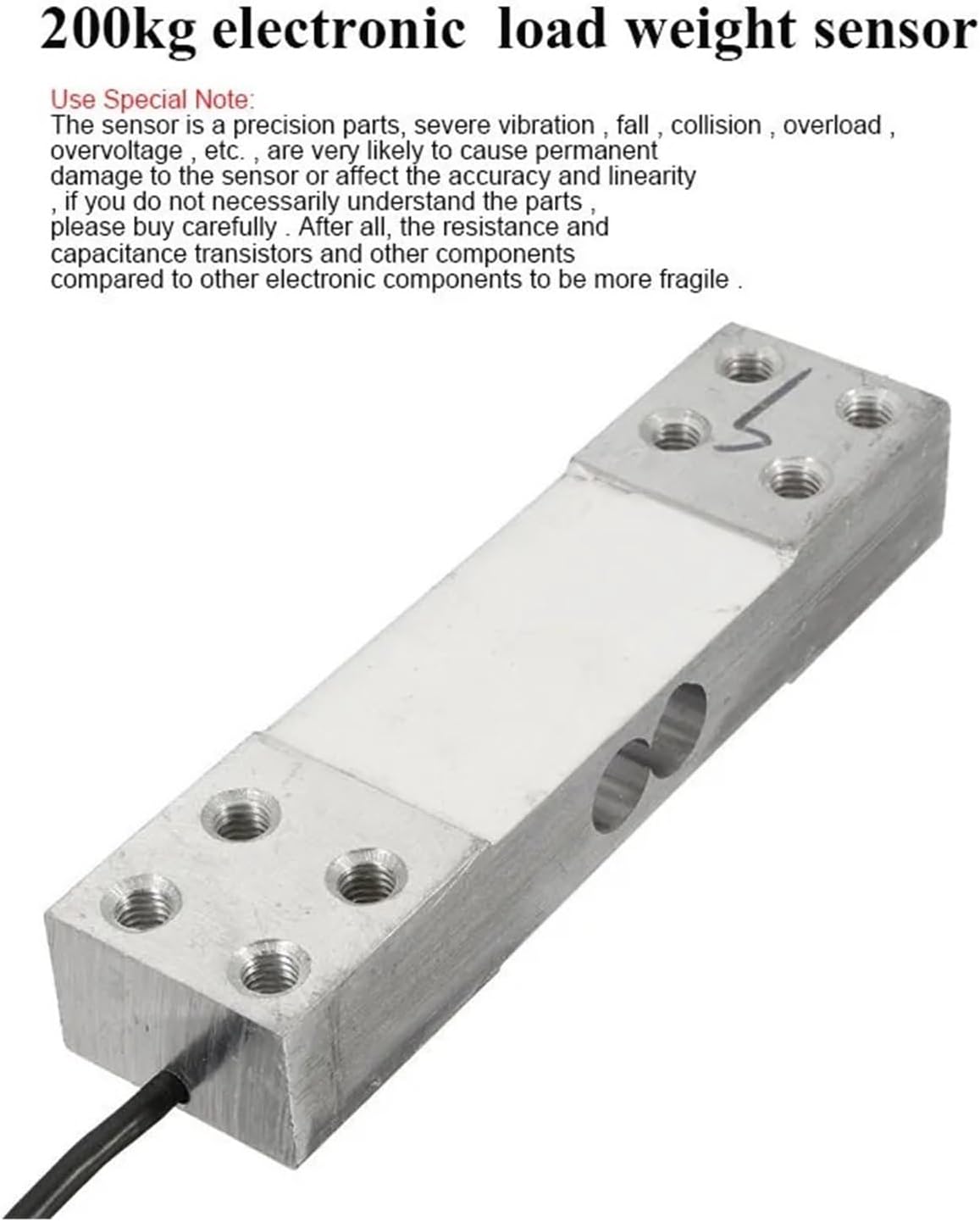

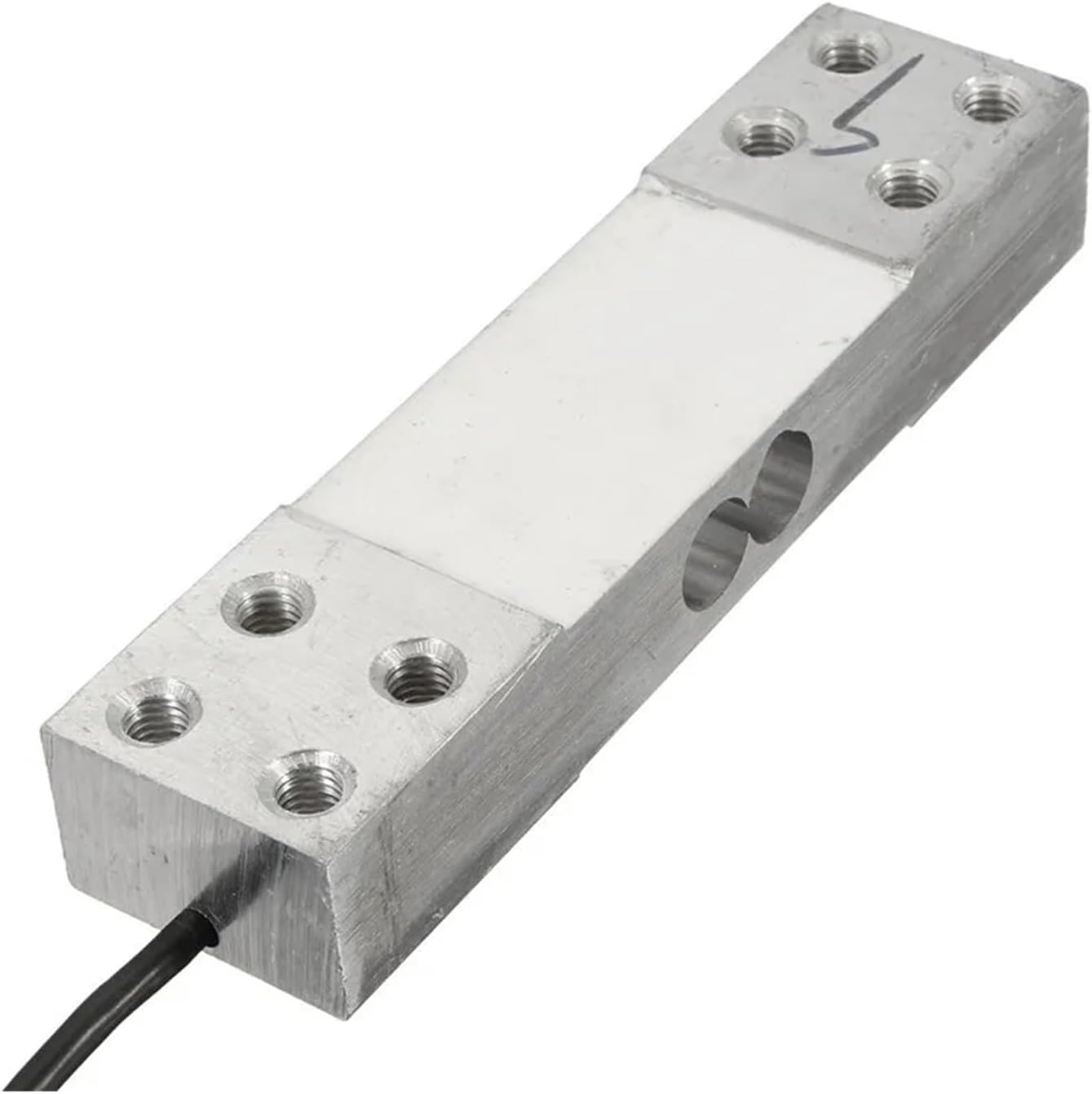

Load Cell, 1PC in Use 1PCX 200kg Electronic Platform Scale Load Cell Pressure Balanced Cantilever Load Weight Sensor for Hopper Weight High Pressure Tension Weighing(2PCS) (2pcs A)

NOTE:in order add the life of the sensor to prevent damage caused by being overweight . as usual ,200KG sensor only can use for 100kg scale only delivery 200kgTechnical parametersComprehensive error : 0.02% F.S Sensitivity :1.0 0.1mv / v Nonlinearity: 0.02% F.S Hysteresis: 0.02% F.S Importance of :0.02% F.S Creep: 0.02% F.S/10min 0:00 Output :2% F.S Input Impedance :405 10 Output impedance :350 3 Insulation resistance :5000M (100VDC) Excitation voltage :5VDC ~ 12VDC Temperature compensation range :10 ~ +40 Operating temperature range: -20 ~ +60 Temperature effect on zero 0.03% F.S/10 Temmp.effect 0.02% F.S/10 Safe overload 120% Ultimate Overload 150% Protection class IP65 WiringBlack Power + , white Power - Red Signal + green signal -Use Special Note: The sensor is a precision parts, severe vibration , fall , collision ,overload , overvoltage , etc. , are very likely to cause permanent damage to the sensor oraffect the accuracy and linearity , if you do not necessarily understand the parts ,please buy carefully . After all, the resistance and capacitance transistors and other components compared to other electronic components to be more fragile .Resistance strain gauge pressure sensorMainly by the elastic body ,the resistance strain gauge cable and other components , the internal circuit using Huygens bridge, when the elastic body is deformed under load ,Resistance strain gauge ( conversion element ) film subjected to tensile or compressive strain deformation ,its resistance will change ( increase or decrease ) , so that the bridge out of balance ,a corresponding differential signal for subsequent measurement circuit and handling.

• - Direct output as voltage signal.
• - Made of quality materials, .
• - Full bridge structure, four leads, easy to use.
• - Take special care not to press the white glued part directly to avoid damaging the sensor.
• - end of the sensor is fixed by the screw hole, the other end is kept in a suspended state, applied in the direction indicated on the label.
