HELLA 3AG 003 399-101 Air Horn - B133-24V - 118dB(A) - Frequency Range: 375Hz/500Hz - Loud Tone - Housing Colour: Black - Flat Plug-in Connector - Quantity: 2 - Set
Product details
| Management number | 213155316 | Release Date | 2026/04/12 | List Price | $61.21 | Model Number | 213155316 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Inspection Tag: E1 0414Diameter [mm]: 123Width [mm]: 125Overall Height [mm]: 135Protection Type (IP Code): X4K, X9K, X7Bearing Type: Blade CouplingQuantity: 2Quantity Unit: SetDepth [mm]: 85Rated Voltage [V]: 24Supplementary Article/Supplementary Info 2: with moisture protection, with rubber grommet, with condensor, without E quality sealHousing Colour: BlackFrequency Range [Hz]: 375, 500Power Consumption [W]: 84Signal: Loud ToneSound Level [dB(A)]: 118Interference SuppressionTemperature range from [°C]: -40to temperature range [°C]: 75
- Sound pressure level at 3.5 m distance: 110 dB(A)

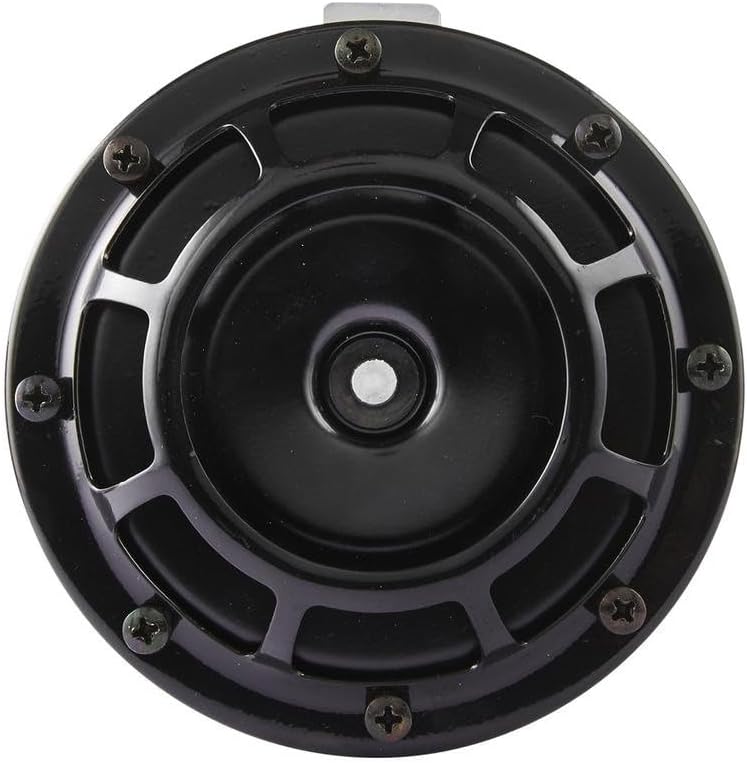

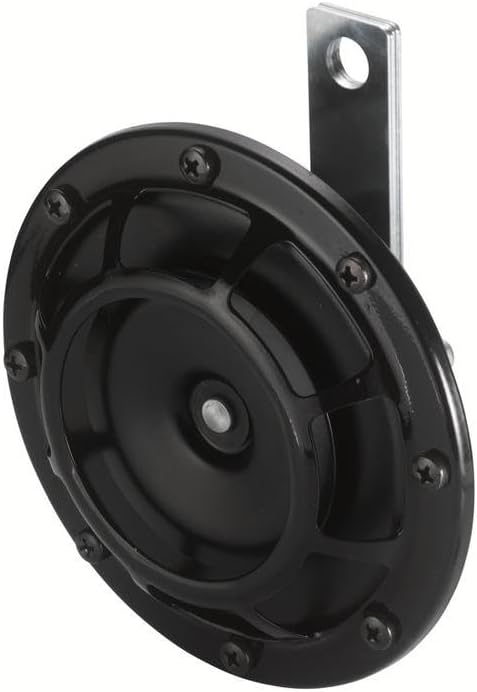

- Metal housing and protective grille painted black

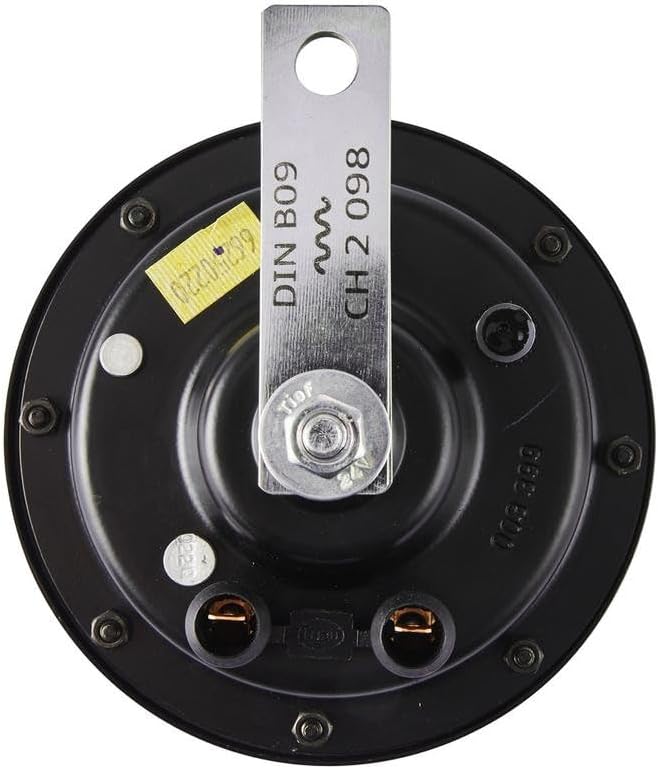

- Holder on horn for fastening screw M10
- With Teflon pill for protection against moisture, with interference suppression capacitor. Rubber grommet for contact protection.

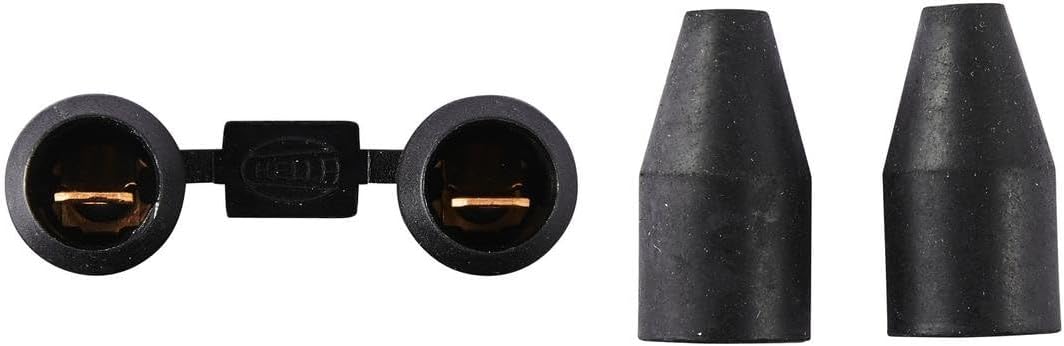

- With flat terminals 6.3 mm, protected.
- Temperature range from: -40°C - Temperature range to: 75°C - Frequency Range: 375/500Hz - Power consumption: 84W
- Ø: 123mm - Width: 125mm - Overall Height: 135mm - Depth: 85mm
- Inspection Tag: E1 0414
- Diameter [mm]: 123
- Width [mm]: 125
- Overall Height [mm]: 135
- Protection Type (IP Code): X4K, X9K, X7
| Color | Black |
|---|---|
| Voltage | 24 Volts |
| Fit Type | Vehicle Specific Fit |
| Brand Name | Hella |
| Style Name | Protection |
| Item Weight | 1.12 Kilograms |
| Noise Level | 110 Decibels |
| Manufacturer | Hella KGaA Hueck & Co |
| Material Type | Metal Rubber |
| Item Dimensions | 6.18 x 5.39 x 5.51 inches |
| Manufacturer Part Number | 3AG 003 399-101 |
| Compatible with Vehicle Type | Bus, Passenger Car, Truck |
| Global Trade Identification Number | 04082300026290 |
