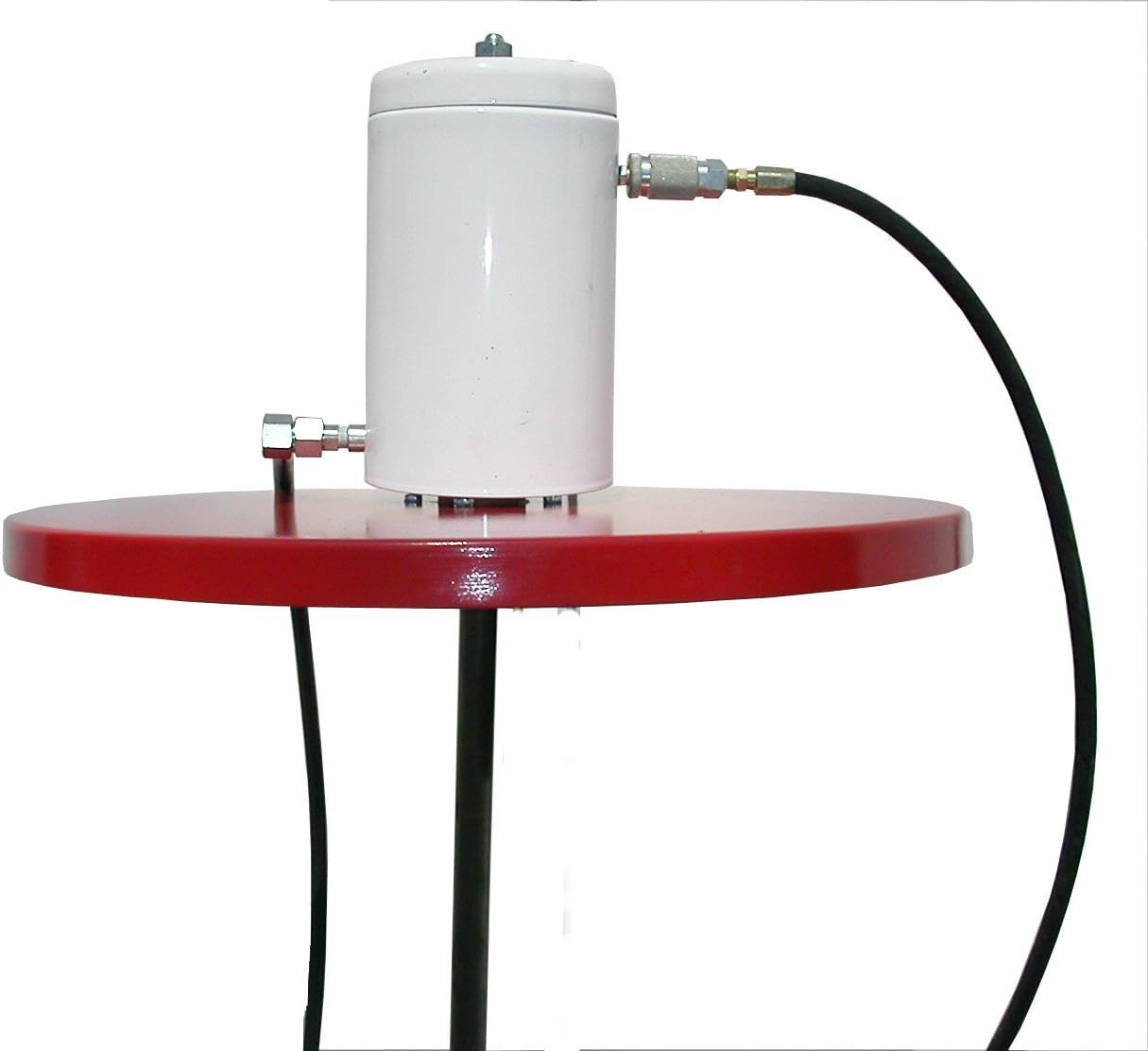

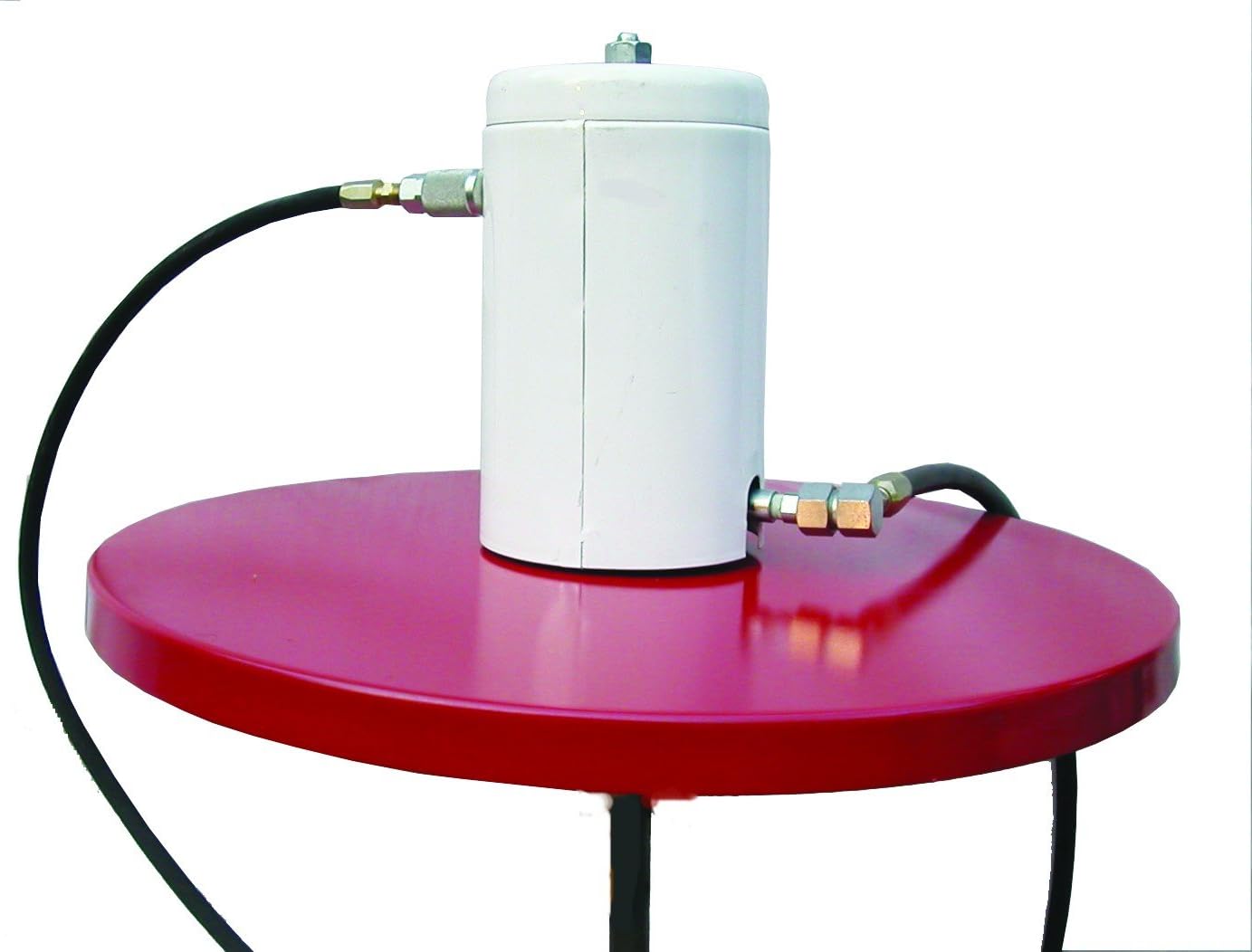

Grease Pump Assembly w/Drum Cover for a 400LB(55 Gallon)(181.4KG) Drum

AMZ6926ME: Description: 400LB(55 Gallon)(181.4KG) Drum Grease Pump Assembly w/ Drum Cover . 1: 50:1 Double Acting Heavy Duty High Pressure Pump; provides uniform pressure and delivery on the up and down stroke. 2: Rapid Disconnect Air Coupler & Air Nipple 1/8"(M). 3: 3ft (.92mtrs) x 1/4" Air Connecting Hose. 4: 4ft (1.23mtrs) High Pressure Grease Hose. 5: High Pressure Volume Union Elbow 1/4"(F) x 1/4"(M). 6: Air Inlet 1/8” NPT (F); Lube Outlet: ¼” NPT (F). 7: Steel Pump Cover (White) & Air Motor Muffler. 8: Drum Cover for 400LB Drum (Red). 9: Pump Specifications: Pump Tube Length 33-15/16" (86.20CM) made for 400 lb Drum & 1.0” (2.54CM)Diameter; Air Motor Height: 11.0"(27.94CM); Overall Height of Unit: 44-15/16"(114.2CM). 10: The high pressure Grease Pump incorporates a 20 cu. in. air motor design. 11: Output: 80 cu in/minute (45 oz) of Grease at 100PSI NLGI#2 at 70 Degrees ambient temperature (.35cu in/cycle). 12: Downtube Packings made of Viton / Teflon for longer life. 13. Maximum Air Pressure: 150PSI; Recomended: 80-100PSI; Maximum Grease Pressure: 7500PSI; Recomended: 5000 PSI. 14: One Year Warranty against Materials, Workmanship and Labor. 15. All Pumps are Pressure Tested Statically and Dynamically in NLGI#2 Grease at the Factory for Output, Pressure, Performance and Quality. 16: Additional Accessories Available: Grease Strainer for Pump Tube; Follower Plate; Does not include follower plate; must order separately. 17: Optional Hoses Available: 10ft(3.04mtrs); 20ft (6.09 mtrs); 30ft ((9.14mtrs); 40ft (12.2mtrs); 50ft (15.2mtrs). 18: Complete Repair Kits & Parts Available: 19: Other Information : Weights and Dimensions Weight: Box #1: 26LB (11.8KG) Box #2: (Cover) 12LBS (5.5KG) Box Dimensions:Box #1(Pump): Length:8"(20.3CM) X Width:11"(27.9CM) X Height: 49-1/2"(125.8CM); Box #2:(Drum Cover) 24"(60.9CM) 24"(60.9CM) x 3"(7.62CM)

• 50:1 Double Acting Heavy Duty High Pressure Pump; provides uniform pressure and delivery on the up and down stroke.
• Grease Output: 80 cu in/minute (45 oz) of Grease at 100PSI NLGI#2 at 70 Degrees ambient temperature (.35cu in/cycle).
• Downtube Packings made of Viton / Teflon for longer life.
• Maximum Air Pressure: 150PSI; Recomended: 80-100PSI; Maximum Grease Pressure: 7500PSI; Recomended: 5000 PSI.
• High Pressure Volume Union Elbow 1/4"(F) x 1/4"(M) so no twisting of hose
