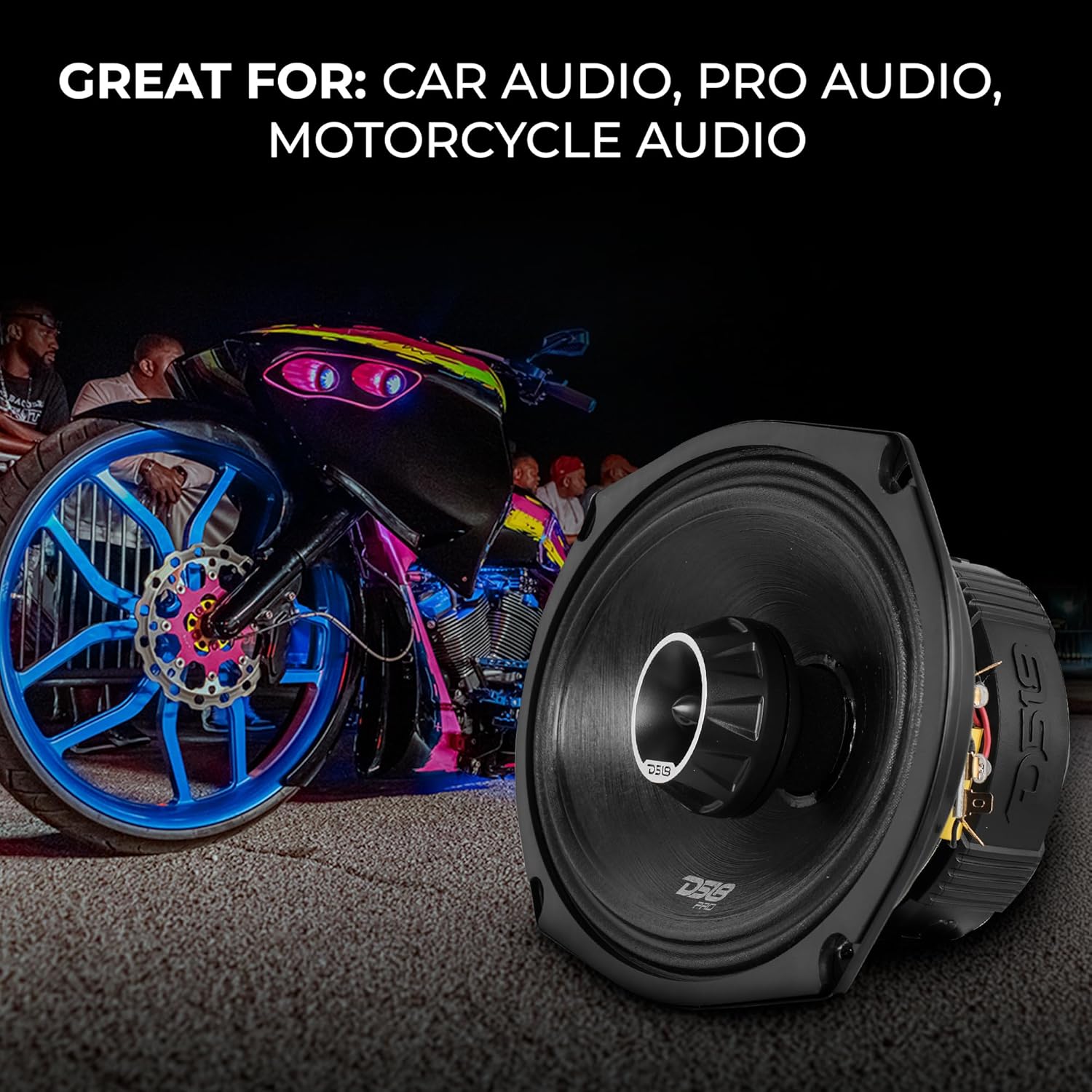

DS18 PRO-ZT Pro Audio Coaxial Midrange Speakers with Built-in Bullet Tweeter, 4-Ohms, Water Resistant - Black Metal Mesh Grill Included (1 Speaker) (6x9 inches)
Product details
| Management number | 223390636 | Release Date | 2026/05/09 | List Price | $45.58 | Model Number | 223390636 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
PRO-ZT69 General Nominal Diameter: 6 x 9" Nominal Impedance: 4 Ohms RMS Power Handing: 275 Watts MAX Power Handing: 550 Watts Sensivity (1w/1m): 98dB Frequency Response: 60Hz - 22KHz Recommended Hi Pass Crossover: 80Hz Midrange Voice Coil Diameter: 1.5" (38.1mm) Voice Coil Former Material: Kapton Winding Material: CCAW Basket Material: Steel Magnet Weight: 27 oz Tweeter Voice Coil Diameter: 1" Voice Coil Material: Kapton Winding Material: CCAW Diaphragm Material: Aluminum Alloy Magnet Weight: 0.44 oz Magnet Material: Neodymium Thiele & Small Parameters Equivalent Volume / Vas: 14.6927 LTR Excursion / Xmax: 1.6mm Free Air Resonance / Fs: 85Hz Mechanical Factor / Qms: 3.906 Electrical Factor / Qes: 0.639 Total Factor / Qts: 0.602 DC Resistance / Re: 3.2 ohms Measurements Overall Diameter: 260 x 180mm (10.24 x 7.09") Front Mount Baffle Cutout: 219 x 150 (8.62 x 5.91") Mounting Depth: 85 mm (3.35") Overall Depth: 97 mm (3.81")
- 2-WAY SPEAKER - DS18 has designed the perfect speaker that combines both a midrange and a tweeter, giving you a great balance and value in one efficient package.
- POWER YOU CAN COUNT ON - The PRO-ZT69 delivers an impressive 550W Max Power with 275W RMS at 4 Ohms, enough to tackle a full range of audio.
- HIGH-QUALITY VOICE COIL - 1.5” high-temperature Kapton voice coil can handle extreme heat and maintain its structural integrity meaning long life out of your speakers.
- UNMATCHED ENGINEERING - The PRO-Z line of speakers come with a kapton voice coils, steel midrange basket, aluminum tweeter diaphragm, and CCAW winding material all at an affordable price.
- 6x9" MIDRANGE WITH NEODYMIUM MAGNET - Settle for nothing but the best with neodymium magnets that produces a wider range of tones and can handle tremendous power at high volumes.
| UPC | 810005180771 |
|---|---|
| ASIN | B07M65JZQ5 |
| Brand | DS18 |
| Color | Black |
| Impedance | 4 Ohms |
| MP3 player | No |
| Model Name | PRO-ZTHY |
| Item Weight | 5.49 Pounds |
| Manufacturer | DS18 |
| Model Number | PRO-ZT |
| Power Source | Corded Electric |
| Speaker Size | 22 Centimeters |
| Speaker Type | Mid-Range Loudspeaker with Built-in Bullet Tweeter |
| BuiltIn Media | speaker |
| Is Waterproof | TRUE |
| Mounting Type | Flush Mount |
| Warranty Type | Limited |
| Control Method | Voice |
| Item Type Name | PRO-ZT69 |
| Controller Type | Corded electric |
| Number of Items | 1 |
| Woofer Diameter | 9 Inches |
| Antenna Location | Car Audio Pro Audio |
| Audio Driver Size | 6 Inches |
| Audio Driver Type | Piezoelectric Driver |
| Audio Output Mode | Stereo |
| Compatible Devices | Laptop, Personal Computer, Smartphone |
| Enclosure Material | Metal |
| Frequency Response | 22 KHz |
| Subwoofer Diameter | 9 Inches |
| Additional Features | Hi Res Audio |
| SignaltoNoise Ratio | 98 dB |
| Wireless Technology | No Wireless Communication Technology |
| Warranty Description | manufacter |
| Age Range Description | Adult |
| Connectivity Protocol | Wired |
| Connectivity Technology | Wired |
| Number of Audio Channels | 2.0 |
| Item Dimensions D x W x H | 3.81"D x 6.5"W x 6.5"H |
| Specific Uses For Product | Motorcycle use, Outdoor applications, Marine applications |
| Compatible with Vehicle Type | Motorcycle |
| Speaker Maximum Output Power | 550 Watts |
| Subwoofer Connectivity Technology | Wired |
