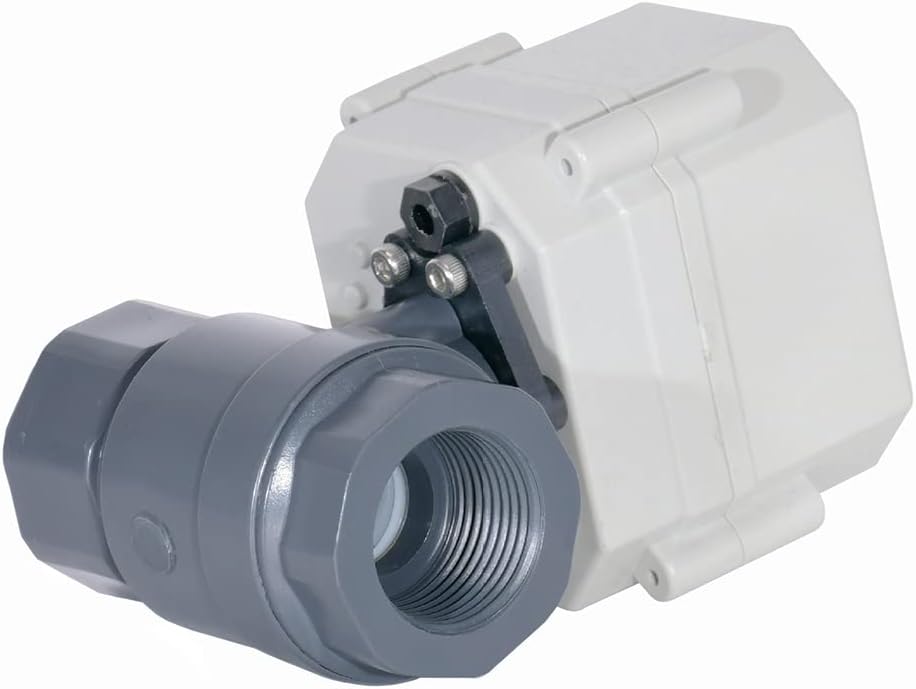

2 Way 12V/24VAC/DC 9-24V CR5-02 On/Off Auto Return Electrical Position Feedback Motorized Ball Valve (3/4" PVC)

Technical Parameter:◎Model: T20-P2-B;◎Working Voltage: 9-24VAC/DC;◎Valve Dimension:3/4" NPT Full Bore Female Thread Connection;◎Wiring Diagram:CR5-02(2 Wires Control, Installed With Position Feedback Wires);◎Valve Body Material: PVC;◎Actuator Material: Engineering Plastics;◎Open/Closed Time: About 3-5Sec.; ◎Suitable Media: Air, Water, Oil; ◎Power: Max 2 Watts;◎Manual Override: Yes; ◎Indicator: Yes; ◎Working Current: Max 500Ma When Action, Cut Off Current When Arrived At Place; ◎Max. Torque Force For Aucator: 2 N.M; ◎Cables Length: 0.5 Meters;◎Max Working Pressure:145PSI(1.0MPA); ◎Liquid Temperature: 32°~212°F (0°~100°C);◎Environment Temperature:5~122F(-15°~50°C);Application:◎HVAC;◎Water Treatment;◎Chemical Process;◎Small Industrial Equipment For Automatic Control;◎Replacing Solenoid Valve, Particularly When Solenoid Cannot Work Reliably;◎Automatic Control Systems;◎Efficient Water-Saving, Water Equipment;◎Solar Hot Water Project;◎Regular Watering The Flowers, Timing Humidifying, Timing of Drainage of Air Compressor.Features: ◎Smart Shape, Perform Reliably, Large Output Torque, As Long As 50000-100000 Times , Convenience For All Kinds Of Requirements;◎Float Ball design, No Leak, Large Flow, The Valve is Bi-directional Ball Valve , Regardless of Inlet And Outlet , Most Suitable for Heavy Dirt and Long Time No Action;◎The Conditions That Solenoid Valve Can Not Be Worked;◎High Protection Class, Can Be Worked In Most Conditions;◎POM Cooperate With Metal Gear, The POM Gear is Used in High-Speed Level to Reduce Noise, At The Same Time Metal Gear is Applied At The Low-Grade To Ensure The Reliability of The Gear;◎Electrical and Mechanical Limit Integrated Design, Accurate Localization ,High consistency , Put an End to Swing of Valve.

• 2 Way 3/4" NPT Full Bore PVC Valve Body;
• Wide Range Working Voltage Design, Work From 9-24VAC And 9-36VDC;
• Limit Switches Bulid-In, Auto Cut Off Current When Arrived At Place(0Ma);
• 2 Wires Control Normally Closed Design And Installed With Position Feedback Wires;
• Build In Capacitor Return, Will Return To Original Position When Power Off/Power Failed
